Silver
Standard product reference

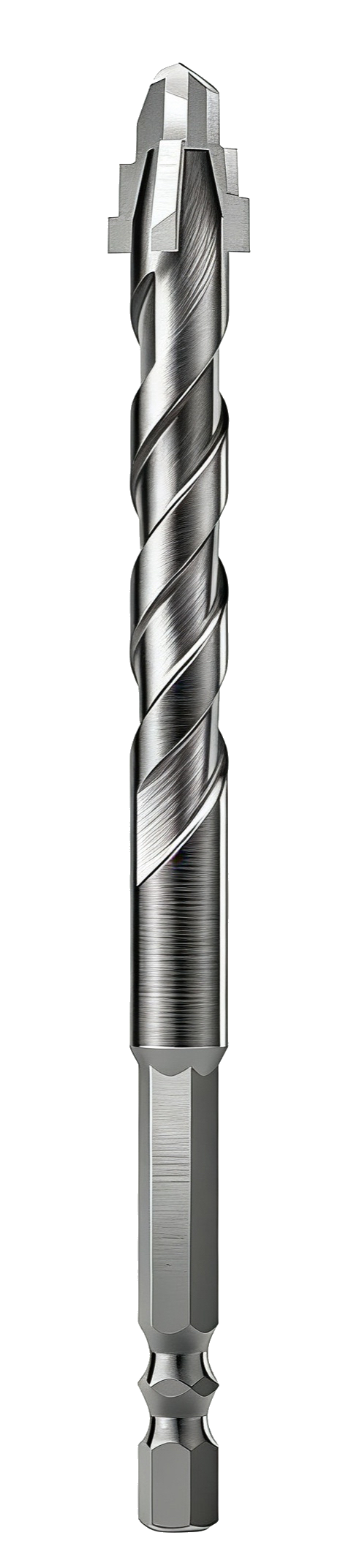

BK-9062 Series
Stepped Head Tile Drill Bit for Wholesale Supply
A factory-direct tile drilling product line for distributors, hardware brands, online sellers and professional installation supply buyers.
Stepped HeadDesigned for stable positioning on smooth tile surfaces.
6.35mm Hex ShankCompatible with most common electric drills and drivers.
YS9 Carbide HeadHard alloy cutter head for tile, ceramic and glass drilling.
Detailed DataSize, length, material and hardness data ready for quotation.
Color Display
OEM Color Presentation for Different Markets
Use the silver product as the standard reference. Other colors are visual references for market presentation and should be confirmed by samples before bulk orders.
Silver
Standard product reference
Blue
OEM color reference
Green
OEM color reference

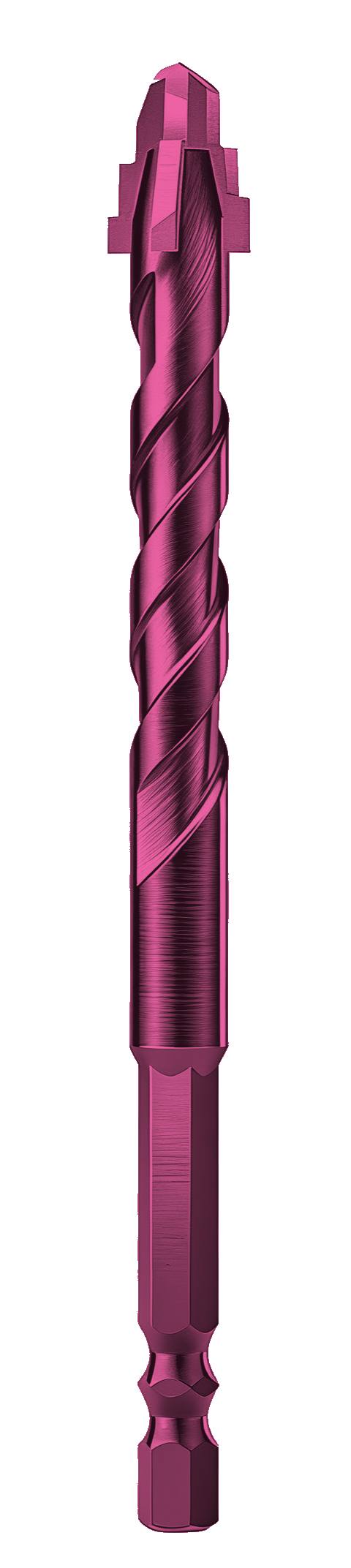

Rose
OEM color reference
Black
OEM color reference
Bronze
OEM color reference
Product Advantages
Built for Professional Tile Drilling and Retail Tool Supply
BK-9062 combines a stepped positioning head, spiral flute body and hex shank. It is easy for buyers to understand, suitable for sample kits, and convenient for distributor product lines.
Stable StartTiered head helps reduce slipping at the beginning.
Clean DrillingGood for tile and ceramic drilling with proper speed and water cooling.
Retail FriendlySuitable for single-size packs or mixed-size sets.
Wholesale FlexibleSupports sample order, mixed order and OEM packaging.
Detail Display
Key Structure Close-Ups

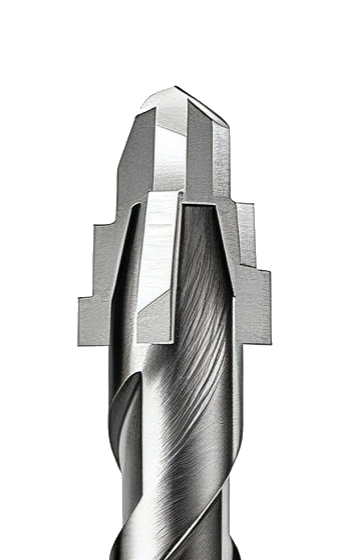

Stepped Head
Side shoulders support positioning on tile, ceramic and glass surfaces before full drilling begins.

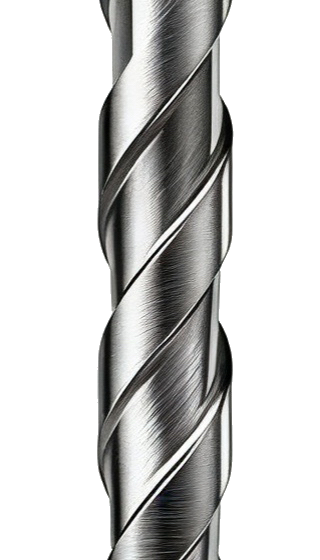

Spiral Flute
The flute body supports chip removal and smoother drilling during installation work.

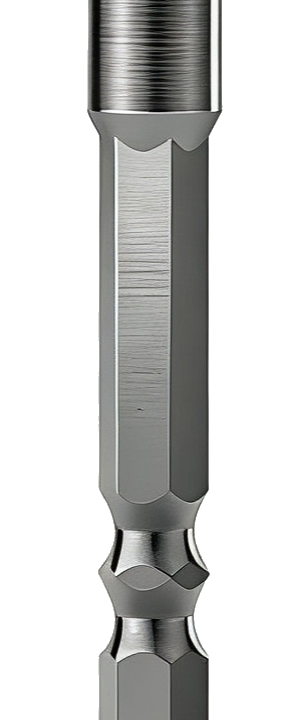

Hex Shank
6.35mm shank improves chuck grip and compatibility with common drilling tools.
Size Display
Available Sizes and Factory Dimensions
Complete size data helps distributors prepare quotation sheets, catalog pages and online product listings.
3mm4mm5mm6mm6.5mm8mm10mm12mm
| Diameter | Head Length | Working Length | Total Length | Shank Dia. | Head Material | Grade | Head Hardness | Body Material | Body Hardness |
|---|---|---|---|---|---|---|---|---|---|
| 3mm | 8mm | 50mm | 93mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 4mm | 10mm | 50mm | 93mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 5mm | 10.5mm | 55mm | 98mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 6mm | 11mm | 55mm | 98mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 6.5mm | 11mm | 55mm | 98mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 8mm | 12.2mm | 70mm | 115mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 10mm | 13mm | 80mm | 120mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
| 12mm | 15mm | 90mm | 135mm | 6.35mm | Carbide alloy | YS9 | 96HRC | 45# steel | 40HRC |
Usage Scenarios
Designed for Installation, Retail and Distribution

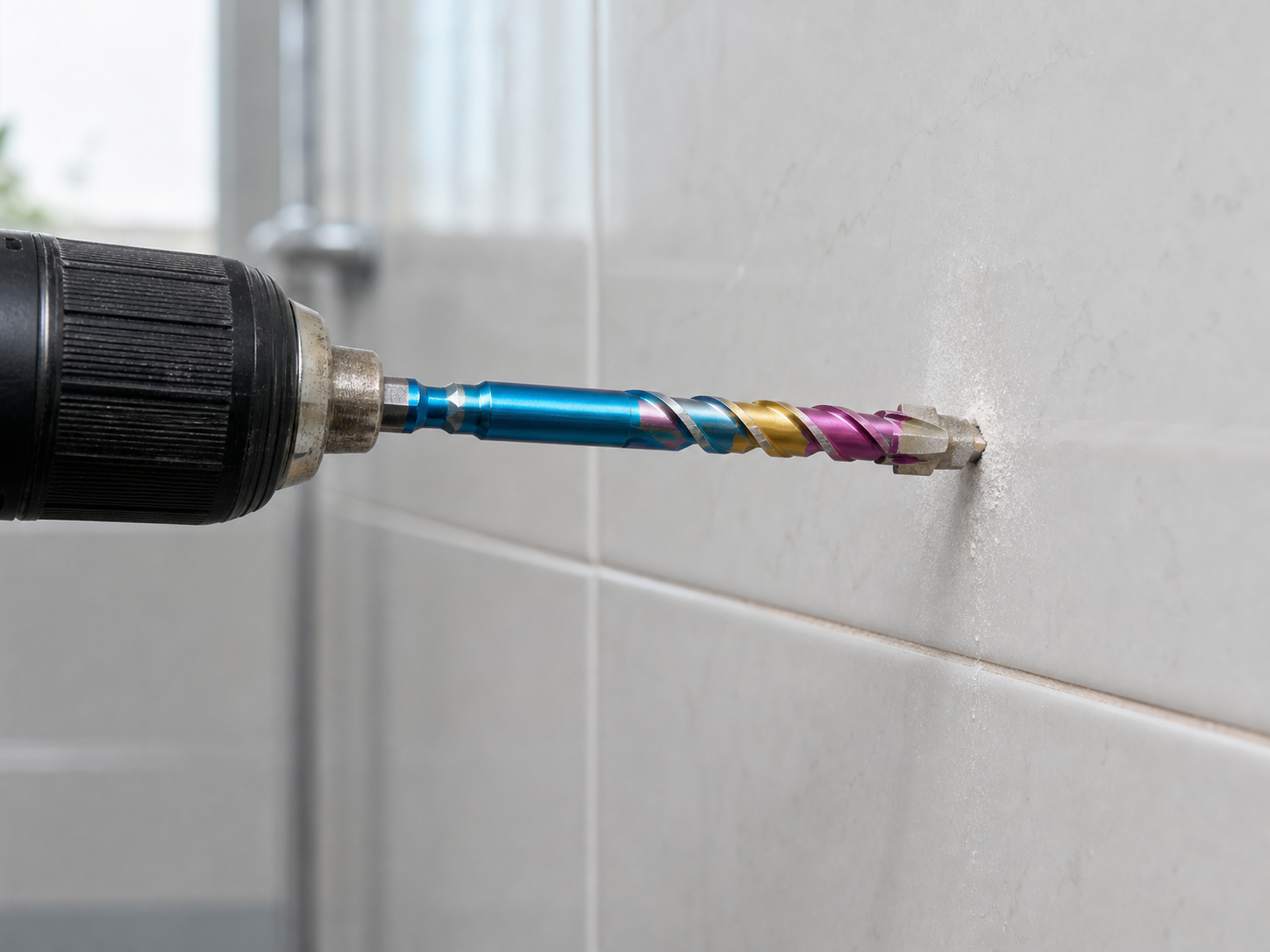

Tile Installation
Suitable for bathroom, kitchen and wall tile drilling jobs.

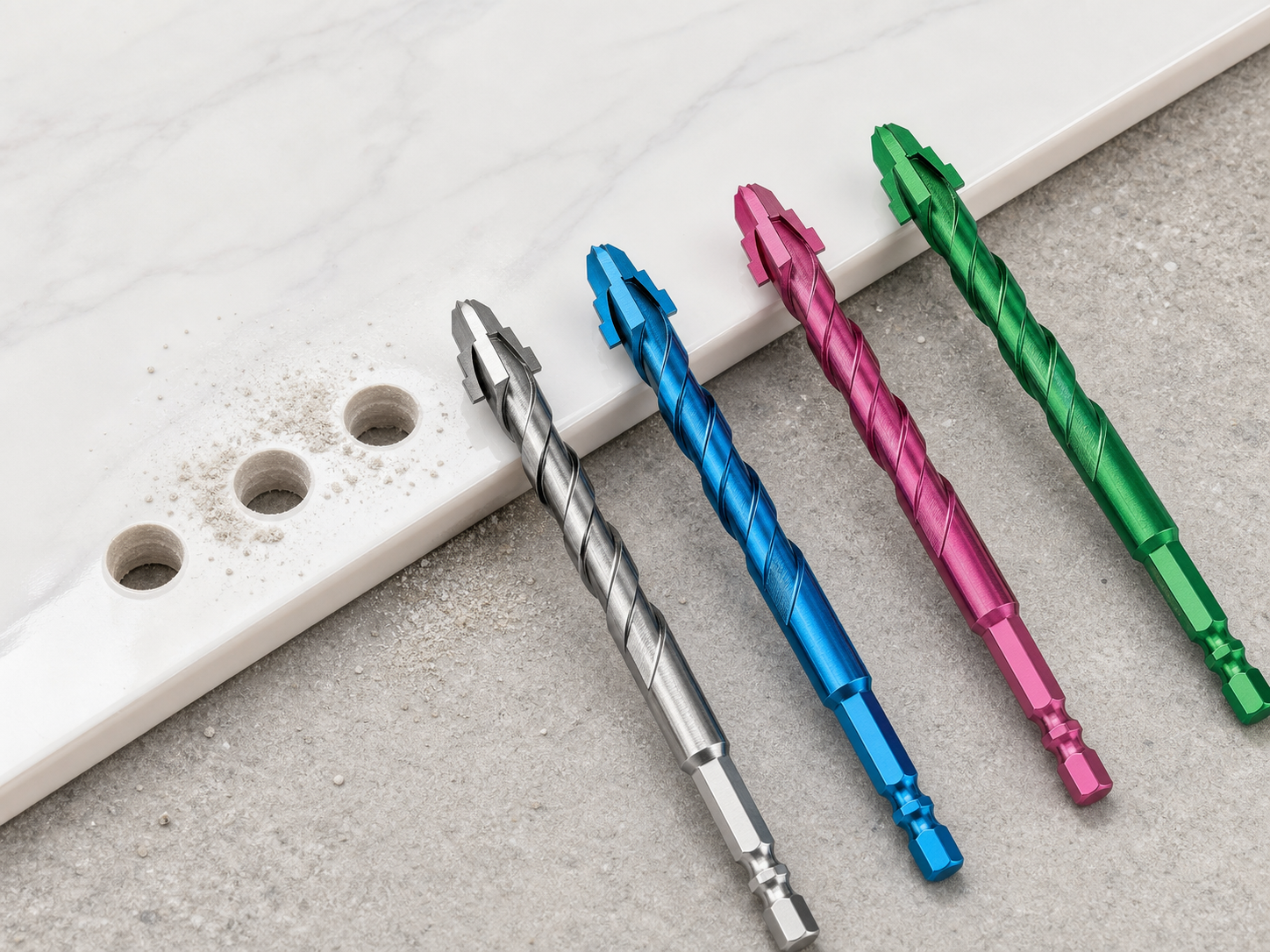

Clean Hole Result
Use proper speed and water cooling for better drilling performance.

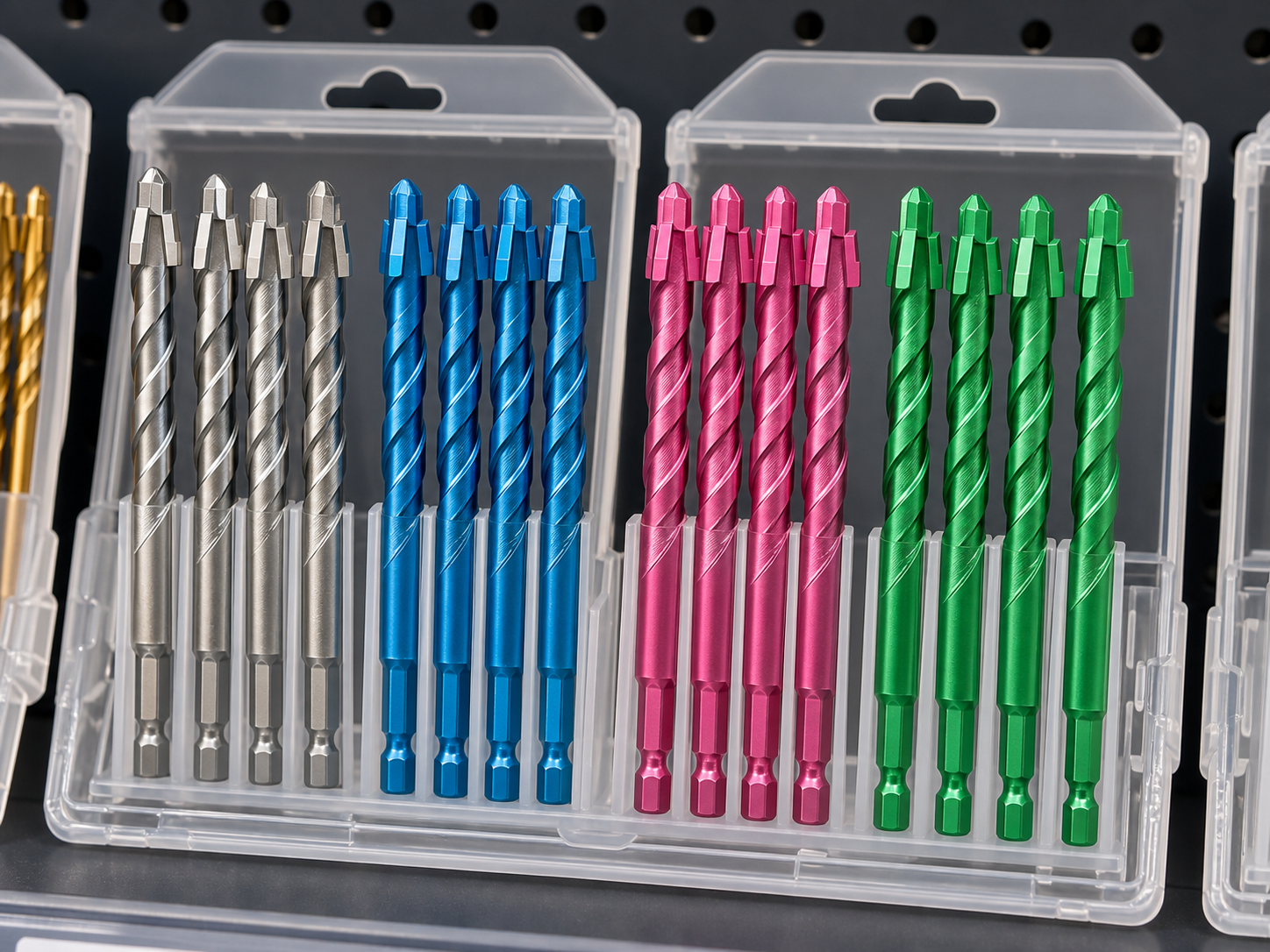

Retail Display
Color and packaging options help distributors build product lines.
Compatible Tools
Works with Common Drilling Tools
Electric DrillCommon installation drilling tool.
Cordless DrillConvenient for on-site decoration work.
Impact DriverUse according to chuck compatibility and working condition.
Sample TestingTest before confirming large-volume packaging.
Packaging Display
OEM Packaging Plans for Different Sales Channels
Bulk Pack
Bulk Wholesale
For distributors who handle local packaging or sell by carton.
Retail Card
Hardware Store Display
Color card, barcode, model sticker and logo can be arranged.
Set Box
Mixed-Size Kits
Suitable for online sellers and professional installation tool kits.
OEM Label
Private Label Supply
Support buyer brand, model label, color card and outer carton mark.
Factory Confidence
Built for Long-Term Overseas Supply
BOK focuses on drilling, cutting and hole-making tools for tile, glass, ceramic and stone applications. We help overseas buyers prepare product pages, packaging plans, sample testing and wholesale quotations.
1993Factory background
OEMPackaging support
B2BWholesale supply
Get Quote
Request Sample Price and Wholesale Price
Send size list, order quantity, packaging style, destination country and logo requirement. We can prepare sample price, wholesale quotation, packing plan and lead time.
